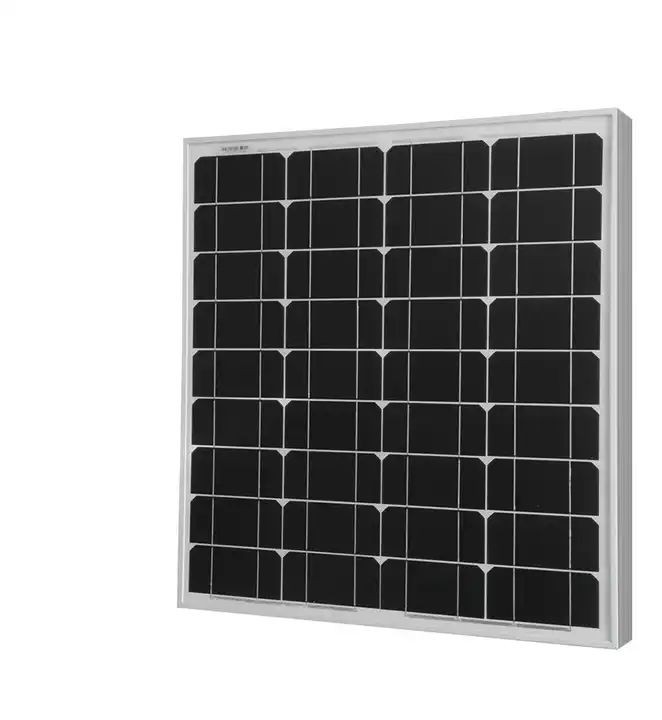

QYY- 50 watt 50watt mono panel solar

● High Modules Conversion Efficiency 10W Mono Solar Panel Provides Up to 10W Power,

● Fast and Easy Installation With Pre-Drilled Hole.

● Basic Component For Off-Grid Solar Panel12/24V/36/48VSystem , Caravan, RVS, Cars ,Boats, Green House Solar system,Solar Light ,Solar Pump Etc

● Withstand high wind (2400Pa) and snow loads (5400Pa); Lightweight Anodized Aluminum .Frame and Reinforced Safety and anti-Reflection Coated Glass 3.2mm Thickand Waterproof IP-65 Rated Junction Box which Allows The Panels Last For a long time.

QYY- 50 watt 50watt mono panel solar

Specifications：

Maximum power(W)	10w	20w	30w	40w	50w
Max power voltage(Vmp)	18.5V	18.5V	18.5V	18.5V	18.5V
Max Power Current(Imp)	0.54A	1.08A	1.65A	2.16A	2.76A
Open Circuit Voltage(Voc)	22.2V	22.2V	22.2V	22.2V	22.2V
Short Circuit Current(Isc)	0.58A	1.16A	1.78A	2.33A	2.98A
Module efficiency (%)	13.5	13.94	13.5	14.21	14.35
Cell type	4*9	4*9	4*9	4*9	4*9
Number of cells	62.5*25	78*39	156*31.2	156*39	156*52

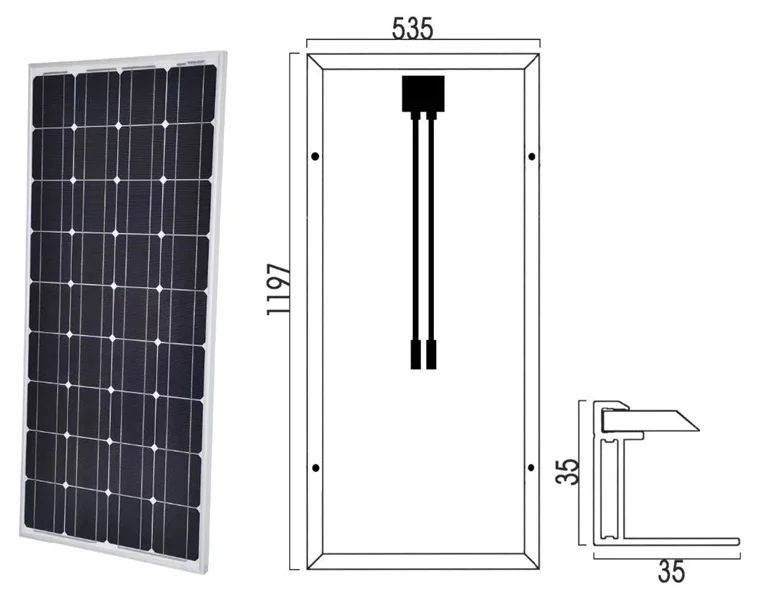

Dimension of solar panel(mm)	30028017	46035017	64035025	67045030	70054030
Warranty	25years	25years	25years	25years	25years
