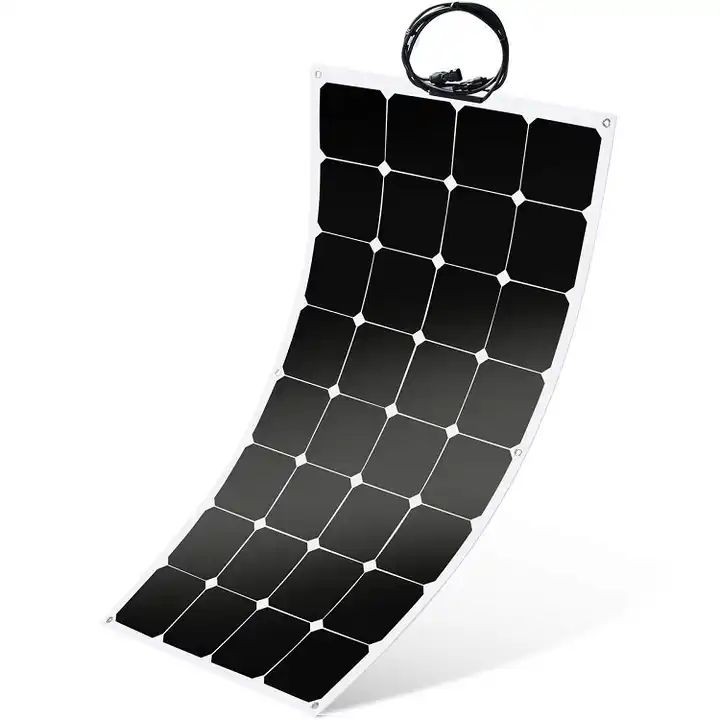

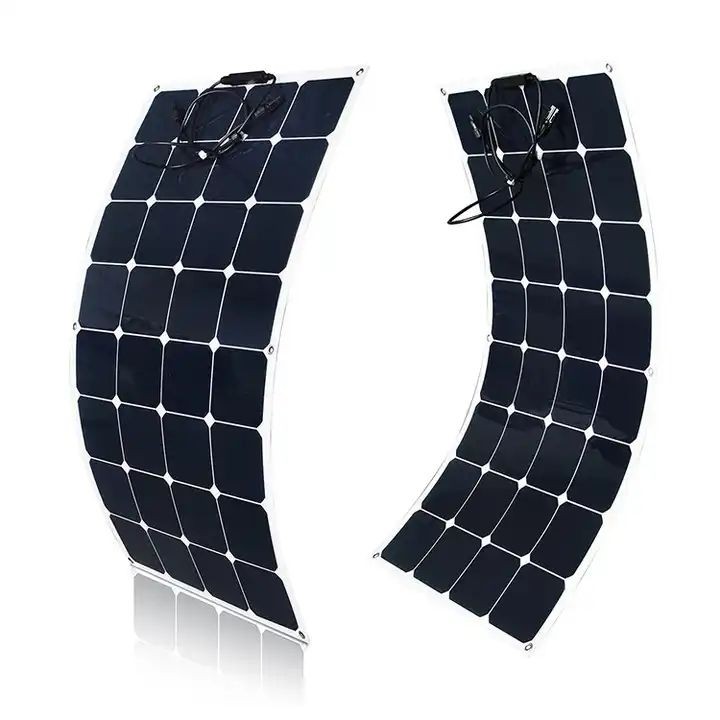

QYY- 18v 36v 100w 150w 200w 300w solar power panels

QYY- 18v 36v 100w 150w 200w 300w solar power panels

Solar cell mono：125*125mm

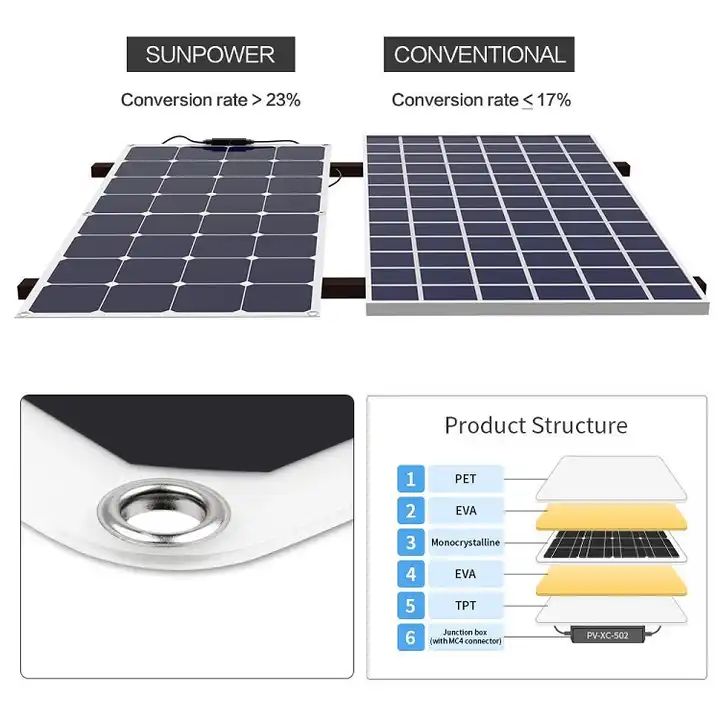

Surface material：PET+EVA
Working voltage [Vmp]：18V
Working current [Imp]：5.56A
Short circuit current [Isc]：5.8A
Open circuit voltage [Voc]：20V
Weight：2.3Kg

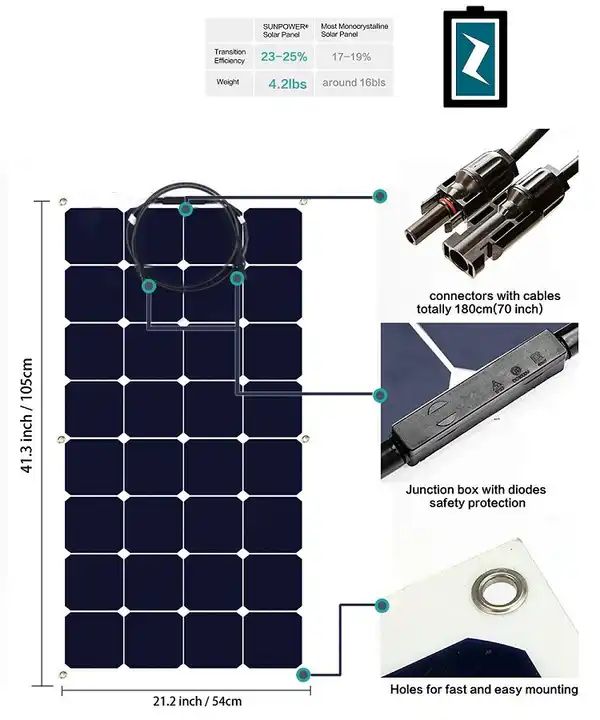

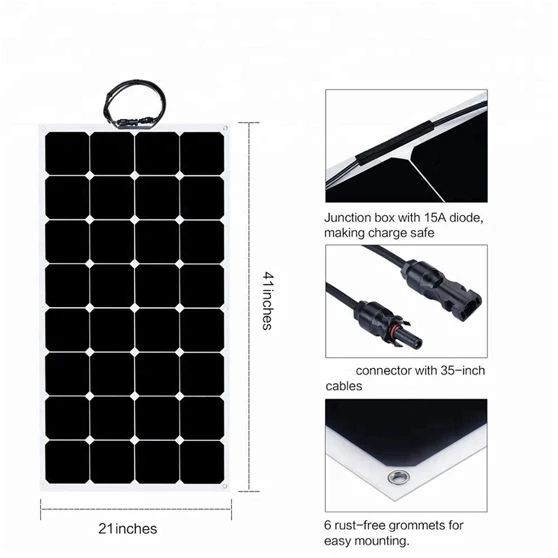

Size ：105*54.5cm
Certificate：CE TUV

QYY- 18v 36v 100w 150w 200w 300w solar power panels

Specifications：

Optimal power(Pmax.)	100w±0.25w sunpower solar panel
Working voltage(Vmp)	18V±0.3v
Working current(Imp)	5.56A±0.15A
Short circuit current(Isc)	5.8A±0.15A
Open circuit voltage(Voc)	20V±0.8V
Ambient temperature	-40℃~85℃
Junction box	IP65
Air resistance	50psf
Snow resistance	113psf
Product Size	105054525mm
Hail impact	25mm
Unit Weight	1.8kg
